Ivium Technologies
Ivium applies innovative, state-of-the-art design and manufacturing techniques to produce an unrivalled range of integrated potentiostats/impedance analysers. From ultra low noise, research-grade instruments through multichannel modular systems, to pocket-portable units. Femtoamps to 100Amps, all with EIS, Ivium offers something for almost every application.

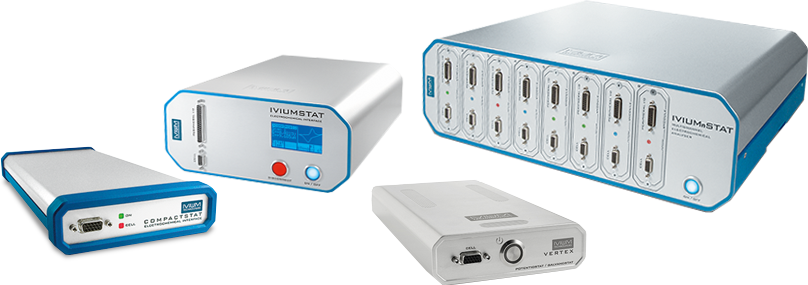

Ivium Stand-alone Potentiostats
IviumStat2.h

- IviumStat2.h scan range: ±5A/±10V
- IviumStat.XRe scan range: ±2A/±50V
- EIS/FRA 10µHz – 8MHz
- Optional Bipotentiostat
- Optional True Linear Scan
- 24 Bit measured current resolution
NEW – CompactStat2.h

The CompactStat2.h and the associated family of CompactStat.h potentiostats offer up to:
- Max current ±800mA & to ±100V
- EIS FRA 10uHz – 3MHz
- 2,000,000 Measurements / sec
- 1,000,000 Readings internal memory (at full speed)
- 24 Bit measured current resolution
Vertex.One

-
- Compliance ±100mA /±21V
- Current Ranges ±100pA to ±100mA
- Optional EIS/FRA 10µHz – 250kHz
- Optional True LInear Scan
Vertex.C

- Compliance ±350mA /±13V
- Current Ranges ±100pA to ±100mA
- EIS/FRA 10µHz – 1MHz
- Optional Bipotentiostat
- Optional True Linear Scan
Ivium XP High Power Potentiostats

- XP40 (±40A/±10V), XP20 (±20A/±20V), and XP10 (±10A/±40V)
- Applied voltage range:±10V
- EIS/FRA 10µHz – 500kHz
- Integrated current interrupt
- Direct K-type thermocouple input connector
pocketSTAT2 and iBlue

-
- Handheld potentiostat
- Compliance ±30mA /±10V
- Current Ranges ±100pA to ±100mA
- EIS/FRA 10µHz – 1MHz.
- Optional Battery & BlueTooth
Ivium HE80 – 20V/80A Potentiostat

Single quadrant 20V, 80A potentiostat with integrated FRA/EIS and designed with electrolysers/hydrogen generation, battery charging, and electrodeposition in mind.
Vertex Range

- Available in several current/voltage configurations
- Current ranges: 100pA to 10A
- Optional EIS/FRA:10µHz – 1MHz
- Optional True Linear Scan generator
Ivium Multichannel Solutions
Ivium MultiWE32

- Controls up to 32 WE’s simultaneously vs 1CE and 1RE
- Designed for low current applications
- Stackable to 256 WEsl
- Requires a compatible Ivium potentiostat
Ivium uMUX64

- 64 independent switching channels
- Relay switching
- Compliance ±5A and ±50V
- 5-electrode switching per channel
- Requires a compatible Ivium potentiostat
Peripheral Port Interfacing (PPE & PDA)

Works with IviumStat or CompactStat to provide analogue and/or digital input and output connections via the Peripheral Port. Grounded or differential inputs.
HiMUX.XR and uMUX

- 8 independent switching channels
- Stackable to 64 channels
- Optional electrometer-per-channel for seamless switching
- 5-electrode switching per channel
- Requires a compatible Ivium potentiostat
IviCycle

-
- Multi-channel battery test system
- Selectable modules from 30mA to 3A
- Optional FRA/EIS: 10µHz-20kHz on each channel for simultaneous testing
- Potentiostat/Galvanostat/ZRA
OctoStat Series

- 8-channel Potentiostat/Galvanostat/ZRA
- Stackable to128 channels
- Independent FRA/EIS per channel
- Runs without pc controller
- No data loss on pc disconnect
Ivium-n-Stat Modular Potentiostat System

-
- To 8 modules/16 channels per frame (stackable up to 64 channels)
- Mix and match modules for maximum versatility
- Independent FRA/EIS per channel
- Potentiostat/Galvanostat/ZRA
