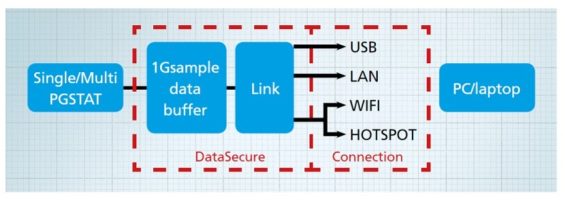

Never lose data again! The DataSecure module sits between potentiostat and PC to store measurement data in hardware for recovery if pc or Windows crashes. With optional WiFi, Lan, and Web interface.
8 independent multiplexer channels, each with 5 electrodes. configurable to 64 channels, either passive or active to minimise transients due to switching between the cells.
32 independent potentiostat / cycler channels each with impedance / EIS. Modules from 30mA to 3A and to ±10V. Systems can be combined to 256 channels.
Regenerative battery cycler offers 16-channels with ±16A per channel and ±5V (or -1 to +9V). The regenerative design minimises heat dissipation, energy consumption and space required to house the system.
CE Link enables combination of multiple potentiostats to, for example, create a full-capability bipotentiostat (or full power multipotentiostat) or to remove the need for floating potentiostats in some setups (eg Devanathan) and so avoid current leakage.
Single or four quadrant 20V, 80A potentiostat with integrated FRA/EIS and designed with electrolysers/hydrogen generation, battery cycling, and electrodeposition in mind.
Adds 3 “real” current ranges to an Ivium potentiostat. “Real” meaning not achieved by software or amplification and so does not amplify noise – just the desired signal!
Controls 32 to 256 WE’s simultaneously vs 1CE and 1RE when used with compatible potentiostat.
The Ivium XP range addresses applications requiring a high current compliance such as electrolyser, battery and fuel cell applications. The range extends to ±40A and ±20V in 3 models, the XP10, XP20, and XP40.
Modular potentiostat system to 16 channels per frame (stackable to 8 frames). EIS per channel.
Add capability to your Ivium potentiostat to meet demands of your expanding research. Models available covering a range up to 500A and 100V.
Free software, this provides a powerful GUI to Ivium instruments based upon Electrochemistry techniques. IviumSoft enables the unmatched flexibility, performance and analytical capabilities of Ivium hardware.
The IviumStat2 range extends beyond 5A with an unbeatable combination of accuracy, measurement speed and memory depth from sub-pA to 500A.
8-channel booster with EIS over 10µHz-10kHz and 16A per channel, parallelable up to 128A. For use with OctoStat or Ivium single channel potentiostats used either singly or with multiple single channel instruments.
8-channel Cycler/Potentiostat/Galvanostat/ZRA, stackable to 128 channels each with independent FRA/EIS. To 15A/128A with OctoBOOST. 30mA, 200mA, 5A versions. Runs and saves data without pc controller.
Works with IviumStat or CompactStat to provide analogue and/or digital input and output connections via the Peripheral Port. Grounded or differential inputs.
